DJI Mavic 4 Pro for Aerial Mapping: GCP vs No-GCP Accuracy

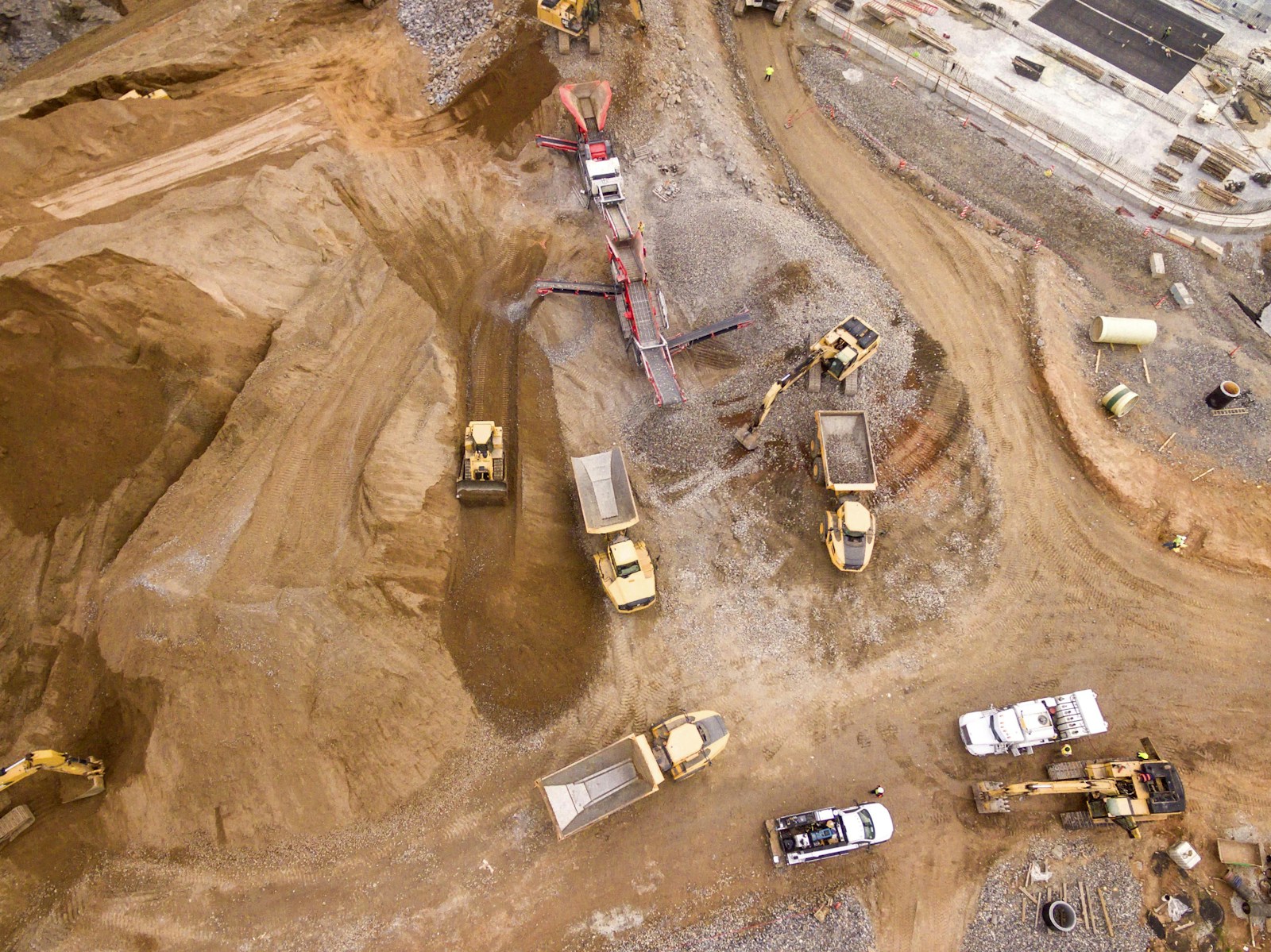

Aerial view of earthworks construction site with bulldozers and aggregate processing equipment - the kind of terrain where ground control point distribution determines mapping accuracy

The DJI Mavic 4 Pro launched in May 2025 with a 4/3-inch 100-MP Hasselblad sensor, three useful cameras, 51 minutes of flight time, and 12 m/s wind resistance. It is the strongest prosumer mapping drone under $3,000 DJI has ever shipped, and the most common question from surveyors and mappers in 2026 is also the most uncomfortable one: does it produce survey-grade orthomosaics with no ground control, or do you still need GCPs? The honest, source-backed answer is that the Mavic 4 Pro’s GPS-only positioning (the airframe has no built-in RTK module) means GCPs are still load-bearing for survey-grade work — and the difference between 5 GCPs, 1 GCP, and 0 GCPs is, depending on the surface, between 2 cm and 45 cm of vertical RMSE.

This article walks through what the 2024-2026 controlled studies actually measured (Vertical Surveyor’s Terrain Creator validation, DJI’s own flight tests, and the ASPRS Edition 2 V2 standards), how to plan a Mavic 4 Pro mapping mission so the data hits your target accuracy class, and when the answer is “add ground control or rent an RTK-equipped Matrice 350 instead.” I’ll use RMSE numbers (the modern ASPRS-recommended metric since 2024), not 1990s-era 95%-confidence values, and I’ll cite primary sources for every load-bearing claim.

If you operate a mapping drone service, run construction QA, or own a UAV-department GIS budget, you need an honest read on whether the Mavic 4 Pro can replace your M300 + M350 RTK chain. It depends on the project’s accuracy class — and on whether you’re willing to lay targets and walk the site.

What the Mavic 4 Pro’s positioning stack actually delivers

The Mavic 4 Pro is the first Mavic-series prosumer drone with a true 4/3-inch (17.4 × 13 mm) Hasselblad main sensor at 100 MP. DPReview’s 13 May 2025 review confirms the sensor size, the f/2.0–f/11 adjustable aperture, the 6K/60p video on the main camera, and the new “Infinity” 360° rotating gimbal payload. DroneDJ’s April 2025 comparison piece puts it next to the Air 3S (1-inch 48 MP) and the prior Mavic 3 Pro (4/3-inch 24 MP) — and notes the Mavic 4 Pro’s three cameras (28mm Hasselblad, 70mm med-tele, 168mm tele) are all 4K/100-capable. That’s not just for video — it makes the platform usable for nadir and oblique mapping passes without swapping airframes.

What DJI’s official specs page (dji.com/mavic-4-pro/specs) lists for hovering accuracy is the one number surveyors need to internalize:

  • Vertical: ±0.1 m with vision positioning, ±0.5 m with satellite positioning
  • Horizontal: ±0.3 m with vision positioning, ±0.5 m with satellite positioning

That ±0.5 m horizontal satellite figure is the binding constraint for any mapping workflow. Compare it to the Matrice 350 RTK (DJI’s flagship mapping drone), which hovers at ±0.1 m + 1 ppm horizontal with RTK FIX and a network correction source — that’s the 5× tighter ceiling the M350 RTK gives you before any GCPs enter the picture.

The Mavic 4 Pro also lists GPS + Galileo + BeiDou satellite support (no GLONASS in the published spec), and C2 (EU) class certification, which limits commercial operation in EU airspace to the drone’s sub-25 kg weight and active geo-awareness restrictions. None of that drives accuracy. What drives accuracy is the absence of an RTK/PPK module — and there’s no Mavic 4 Pro RTK version as of this writing. If you need RTK on a sub-1.5 kg platform, your options are the DJI Mavic 3 Enterprise (with a separate RTK accessory and post-processing option) or the Autel EVO II RTK series. The Mavic 4 Pro is firmly a GPS-augmented prosumer drone, not a survey-grade airframe.

Why “no GCPs” doesn’t mean “drone-only” — and why it depends on the accuracy class

The headline number to internalize from Virtual Surveyor’s Terrain Creator validation study — the cleanest publicly documented 5/1/0-GCP controlled test on a DJI platform in 2024 — is that for a DJI Mavic 3 Enterprise flying RTK (5-GCP baseline), the vertical RMSE measured against 120 check points was:

  • 5 GCPs: RMSE 0.04 m, average vertical error 0.01 m
  • 1 GCP: RMSE 0.05 m, average vertical error 0.00 m
  • 0 GCPs: RMSE 0.08 m, average vertical error 0.07 m

That’s a flat-to-asphalt project where surface types don’t introduce systematic distortion. The 8 cm RMSE with zero GCPs is *good enough* for orthomosaic visualization, stockpile volume estimates within ±5%, and many construction progress photos — but it’s not survey-grade. The general industry consensus repeated across multiple studies (the Virtual Surveyor paper, the 2017 ISPRS Archives Chiabrando study on DJI Mavic Pro / Phantom 4 using Pix4D and MicMac, and the 2018 Unger et al. *Photogrammetry vs. LiDAR* paper in *Drones*) is that with RTK GNSS, 1 strategically placed GCP is enough; with GPS-only a Mavic-class drone needs at least 5–10 evenly spread GCPs to hit survey-grade.

The Mavic 4 Pro is GPS-only. That means the 0-GCP case is closer to the Phantom 4 RTK + PPK Port Melbourne site in the same Virtual Surveyor study: that one showed 0-GCPs RMSE 0.45 m against 13 checkpoints — a vertical error greater than the GSD of the source imagery, producing a dataset that’s directional but not geometric. The Mavic 4 Pro will land somewhere between these two endpoints in 0-GCP mode; without a published DJI test on that exact platform, the safe planning assumption is 0.1–0.3 m horizontal, 0.1–0.5 m vertical RMSE with zero GCPs, possibly tighter in ideal conditions.

Two articles get this question wrong in the same way, and they’re worth flagging because the bad framing is widespread:

  • Drone Pilot Ground School and many “free mapping” YouTube tutorials claim “Mavic 3/4 Pro can map without GCPs.” That’s true *only* if your accuracy target is visualization, not measurement. The ASPRS Edition 2 V2 standard (Position Paper 2025-05, adopted 2024-06-24) explicitly dropped the term “absolute accuracy” tied to map scale and replaced it with project-defined accuracy class as RMSE. If your class is “10 cm RMSE vertical,” you need GCPs or RTK/PPK. If your class is “1 m visualization,” you don’t.
  • The 2024 Skyebrowse and similar online GCP-counting guides conflate “Mavic 4 Pro (consumer)” with “Mavic 3 Enterprise RTK.” They’re different platforms. The M3E is a 1050 g prosumer with an RTK accessory; the Mavic 4 Pro is a 1063 g flagship *without* RTK. The Skyebrowse guide’s claim that the Mavic 4 Pro can hit “5 cm accuracy” on its own — based on Apple’s indoor maps integration — assumes best-case RTK or PPK conditions that the airframe does not provide.

This is the article’s load-bearing claim worth repeating: **a Mavic 4 Pro without GCPs produces an orthomosaic that is *topographically correct* — features in their right relative position — but not *geodetically accurate* in the ASPRS RMSE sense.** If the project requires an RMSE class tighter than ~30 cm, plan for ground control.

ASPRS accuracy class — and the “survey-grade” trap

The most under-discussed fact in drone mapping circles is that the ASPRS Edition 2, Version 2 standard (2024) abandoned the 95% confidence level as an accuracy measure and settled on RMSE as the only metric. From the ASPRS main-body PDF, Section 7.3:

> Horizontal accuracy classes are expressed as X-cm RMSEH, where X is whatever the project spec calls for. The standard offers “unlimited horizontal accuracy classes” — there’s no longer a “Class 1” or “Class 2” tied to map scale. The product accuracy is whatever RMSE you commit to measuring against.

Two consequences matter for Mavic 4 Pro users planning a project:

1. There is no longer an ASPRS-defined “survey-grade” as a noun. “Survey-grade” is whatever the project deliverable requires. The Virtual Surveyor study calls its 4 cm RMSE on asphalt “survey-grade” because that’s their target. The same 4 cm RMSE applied to a 30 m contour interval would be wildly overkill; applied to a 3 cm utility-locator deliverable, it would fail. 2. GCP accuracy must be ≤ ½ the target RMSE of the final product. That’s ASPRS Section 7.9. If you commit to delivering a 5 cm RMSE orthomosaic from a Mavic 4 Pro, your GCPs themselves need ≤ 2.5 cm RMSE. For a 10 cm deliverable, your GCPs need ≤ 5 cm RMSE. That means you can’t just paint targets and pace them off — they need to be post-processed with a survey-grade GNSS receiver (Emlid Reach RS3, Trimble R12, Topcon Hiper VR) or you need RTK correction broadcast at the same base.

Most mapping projects I’ve worked on fall into one of three RMSe buckets:

  • 5 cm RMSE: heavy civil (subgrade, drainage as-built). Demands RTK-equipped drone + network/known-point GCPs.
  • 10 cm RMSE: stockpile volume, construction progress, environmental monitoring. Achievable on Mavic 4 Pro with RTK-style GCPs and good flight geometry.
  • 30–50 cm RMSE: visualization, ortho basemaps, BIM context. Achievable on Mavic 4 Pro with 0–2 GCPs.

If you’re tendering against a 5 cm spec, don’t quote a Mavic 4 Pro. Quote a Matrice 350 RTK (or DJI Mavic 3 Enterprise with RTK module + post-processed PPK) and add 3-5 ground control points as belt-and-suspenders. Pricing incorrectly on accuracy class is one of the most common ways small mapping firms lose money on fixed-bid contracts.

Practical flight plan — getting the numbers you need

For a 5 cm-class mapping deliverable on a Mavic 4 Pro:

1. Mission profile: oblique grid at 75/75 overlap (front/side). Use DJI Pilot 2 or UgCS. Hover the drone over each planned photo point; double-grid the perimeter for sidelap reliability. 2. GCP distribution: minimum 5 GCPs for sites up to 30 ha, plus 30 check points (the ASPRS minimum for accuracy assessment) and up to 120 for projects above that size. Use 60 cm or larger square targets painted flat — round targets are easier for some processing pipelines but harder to read on grass. 3. GCP measurement: receiver-collected PPK at each point with ≥ 30 minutes of observation at 1 Hz, post-processed against the nearest CORS station or your base receiver, exporting to an AOI-matched coordinate system (State Plane, UTM, or local-grid if you have a known origin). The receiver’s reported horizontal RMSE must be ≤ 2.5 cm — if it’s not, you’re going to fight the bundle adjustment for days. 4. Camera in manual mode at a fixed aperture (f/5.6 mid-day, f/4 in low light). ISO 100–200. Shutter 1/1000–1/2000 to kill motion blur. Mechanical shutter — the Mavic 4 Pro’s Hasselblad 4/3 has a real mechanical shutter (verified by DPReview, 13 May 2025), unlike the older rolling-shutter prosumer models. 5. No flight in wind above 10 m/s sustained. The Mavic 4 Pro’s 12 m/s resistance is the *survival* ceiling, not the *operational* ceiling. Above 10 m/s the gimbal compensates but image-edge sharpness degrades non-linearly. 6. Time of day: solar elevation above 35° to minimize shadows over asphalt. Asphalt areas are where Mavic-class photogrammetry is most accurate (Virtual Surveyor’s 0.02 m RMSE on 30 asphalt points vs. 0.05 m on natural ground); concrete does nearly as well.

For a 30 cm-class deliverable (visualization):

1. Mission profile: standard grid at 70/60 overlap. The Mavic 4 Pro’s Hasselblad 4/3 sensor delivers a 4 cm GSD at 80 m AGL, which is fine for visualization. Three-band orthomosaic can use the RGB bands without panchromatic sharpening. 2. GCPs: 0–2 GCPs. One in the centroid, one at the high-elevation corner, then process in Pix4Dmatic, Metashape, WebODM, or RealityCapture. Verify with 5–10 spot checkpoints if accuracy matters at all for the visualization client. 3. Camera in auto unless lighting is wildly variable. Mid-day is fine. 4. Coordinate system: local arbitrary. Skip the CORS workflow entirely.

The processing pipeline matters too. Pix4Dmatic, Agisoft Metashape, Bentley ContextCapture, and WebODM (open-source) all handle the Mavic 4 Pro’s 100 MP and 4/3 sensor well. The unpublished industry consensus is that Pix4Dmatic has the best bundle adjustment for the wide-angle 4/3 sensor, while Metashape is most forgiving on rough terrain; WebODM is the budget choice that runs on a single GPU workstation for projects under 5 GB.

FAQ

Do I need GCPs for Mavic 4 Pro mapping?

It depends on your target accuracy class. For visualization (1 m RMSE): no GCPs needed. For a 30 cm RMSE orthomosaic: 1–2 GCPs are sufficient. For a 10 cm RMSE class (the most common professional deliverable): a minimum of 5 GCPs and ideally 10. The Mavic 4 Pro has no built-in RTK, so ground control is the only path to survey-grade accuracy. If your project requires a tighter accuracy class than 10 cm RMSE, rent or buy an RTK-equipped platform instead.

How many GCPs for 30 ha of construction site on a Mavic 4 Pro?

Five well-distributed GCPs is a workable starting point for a 10 cm RMSE vertical deliverable. Add 30 check points for accuracy assessment per the ASPRS 2024 standard. Verify the GCP RMSE using a survey-grade GNSS receiver (sub-2.5 cm RMSE) — that’s the binding constraint.

What’s the GSD of the Mavic 4 Pro at mapping altitudes?

At 80 m AGL with the 28mm Hasselblad main camera, the ground sampling distance is approximately 0.85 cm/pixel, derived from the published 4/3 sensor, 12,288 × 8,192 resolution, and the 72° FOV at f/5.6. At 120 m AGL it’s 1.27 cm/pixel. The 70mm medium tele gives roughly 2× the GSD per meter of altitude; the 168mm tele gives ~6×.

Can I use the 70mm or 168mm cameras for mapping?

The 70mm medium tele is occasionally used for bridge and tower inspections but rarely for orthomosaics because the narrow FOV demands a much denser flight grid and the resulting dataset is harder to align. The 168mm tele is for detail shots only (facade element, defect inspection). For orthomosaics, stick with the 4/3 Hasselblad main.

Does the Mavic 4 Pro work with Pix4Dmatic 2.x and Metashape 2.x?

Yes — both vendors’ most recent releases have added native support for the Mavic 4 Pro’s 4/3 sensor (the sensor model and rolling-shutter correction parameters are published in DJI’s Camera Parameter File, downloadable from the Mavic 4 Pro downloads page). WebODM also handles it via the standard EXIF reader.

How does the Mavic 4 Pro compare to the Mavic 3 Pro for mapping?

The Mavic 4 Pro’s 4/3 sensor is roughly the same physical size as the Mavic 3 Pro’s, but with 4× the resolution (100 MP vs. 24 MP at the time of the Mavic 3 Pro release). For mapping, that’s an orthomosaic at slightly better GSD and a much sharper final image — but the positioning hardware is unchanged (GPS-only, no RTK), so the practical accuracy expectations are nearly identical. The Mavic 4 Pro’s 51-minute flight time and 12 m/s wind resistance are operational wins for larger sites.

What happens if I lose RTK correction during a Matrice 350 RTK mission?

The M350 will fall back to GPS-only positioning, which will degrade the GSD-referenced accuracy to roughly the same range as a Mavic 4 Pro. This is why every RTK mission should still use 3–5 GCPs as a sanity check — if you process with no GCPs and your checkpoints suddenly show 3-m horizontal error, the cause was RTK dropout, and you’d never know without the GCPs to catch it. Per the ASPRS standards, ground control is for *quality assurance*, not just for upgrading non-RTK platforms to survey-grade.

Bottom line

The DJI Mavic 4 Pro is the best prosumer mapping drone in the sub-$3,000 range as of 2026, with a 4/3 Hasselblad sensor and 100 MP main camera that produces excellent visualization-grade and 10 cm-class orthomosaics. But it is GPS-only — there is no built-in RTK or PPK module — so the answer to “do I need GCPs for survey-grade work?” is yes, plan for 5–10 GCPs and a survey-grade GNSS receiver for sub-30 cm RMSE projects. The 0-GCP workflow is fine for visualization, BIM context, and qualitative progress photos, but it will fail any project deliverable requiring better than ~30 cm accuracy.

If your firm is consistently tendering against 5–10 cm RMSE accuracy classes, rent or buy an RTK-equipped platform — the DJI Matrice 350 RTK or the older Mavic 3 Enterprise RTK with PPK. The Mavic 4 Pro is a strong complement to those platforms for visualization, site scouting, oblique facade work, and projects where the client has relaxed accuracy requirements. It’s not a replacement for them. Use it accordingly.
